Zykon-Panel anchor FZP II T PA

The undercut anchor for thin façade panels, such as HPL and fibre cement.

The undercut anchor for a concealed fixing of thin façade panels such as HPL, fibre cement and mineral EQUITONE fibre cement panels. Use in conjunction with clasp systems or with other attachments.

Product Description

Advantages

The short geometry of the anchor allows it to be used in thin panels starting from 8 mm thickness.
The fixing is not externally visible, creating a visually appealing façade surface.
The matching shape of the undercut anchor creates a inter-locking and stress-free fixing in the conical undercuted drill hole.
Setting the anchor using undercut technology allows the user to select the best structural position in the façade panel. This significantly reduces the bending moment of the panel.
The anchor allows higher failure loads compared to common systems.
This anchor provides much better holding forces than commonly available systems which allows for the use of large format panels.

Available Product Variants

3 Product variant (s) found

Variant

ETA-approval

Anchorage depth

h_ef

Total length

Projection length

Legend = Permission Available — = Permission not Available

Viewed 3 of 3 variant (s)

Application and Permission

Applications

Exterior façades
Interior façades
Façade reveals

Building materials

Fibre cement
HPL panels
Thin panel materials (≥ 8 mm)

* You can find detailed information on building materials in the registration document.

Permission

ETA-11/0465
ETA-22/0669
DoP No. 0262
DoP No. 0756-CPD-0441

For Details see corresponding Documents

Assembly Instruction

Functionality

dry drilling in ceramic
the drill hole is drilled with an absolute anchoring depth
flush installation of the anchor, the spacer washer will be in full contact with the surface of the material
drilling: first cylindrical, then conical - to create the undercut.
inserting the undercut anchor in the cylindrical-conical undercut hole
expanding the undercut anchor by "pressing down" the washer using the setting tools
stress-free and geometrical inter-locking fixing

Documents for Downloading

Approvals

Title	Type	Created	Valid Till
ETA Certification Document (PDF, 3 MB) European Technical Assessment for fischer-Zykon-panel anchor FZP II T for "Royal Mosa stoneware" - Anchor for the rear fixing of facade panels made of ceramic plates "Royal Mosa stoneware" according to EN 14411:2016	ETA-11/0465	14-12-2016
ETA Certification Document (PDF, 3 MB) European Technical Assessment for fischer-Zykon panel anchor FZP II T for "LAMINAM ceramic"	ETA-22/0669	19-12-2022
DOP - Declaration of Performance (PDF, 3 MB) Declaration of Performance for fischer Zykon-panel anchor FZP II T (for Royal Mosa)	DoP No. 0262	11-01-2021
DOP - Declaration of Performance (PDF, 141 KB) Declaration of Performance for for fischer-Zykon-panel-anchor FZP II T for "Royal Mosa stoneware"	DoP No. 0756-CPD-0441	19-06-2013	19-06-2028

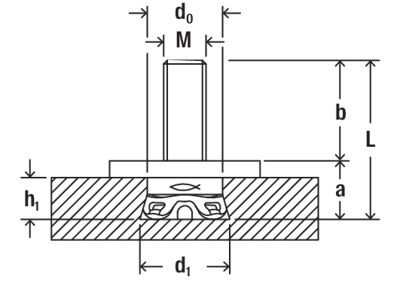

ETA-approval
Anchorage depth h_ef	6 [mm]
Total length l	8.5 [mm]
Projection length	10 [mm]
Thread M	M6
Cylindrical diameter	11 [mm]
Undercutdiameter	13.5 [mm]
Colour	red
Type	Thin panels anchor
Min. panel thickness	10 [mm]
Material sleeve	Polyamid PA 6
Amount	250 [pcs.]
GTIN (EAN-Code)	4048962168471

ETA-approval
Anchorage depth h_ef	8 [mm]
Total length l	10.5 [mm]
Projection length	12 [mm]
Thread M	M6
Cylindrical diameter	11 [mm]
Undercutdiameter	13.5 [mm]
Colour	yellow
Type	Thin panels anchor
Min. panel thickness	12 [mm]
Material sleeve	Polyamid PA 6
Amount	250 [pcs.]
GTIN (EAN-Code)	4048962168495

ETA-approval
Anchorage depth h_ef	10 [mm]
Total length l	12.5 [mm]
Projection length	9 [mm]
Thread M	M6
Cylindrical diameter	11 [mm]
Undercutdiameter	13.5 [mm]
Colour	green
Type	Thin panels anchor
Min. panel thickness	14 [mm]
Material sleeve	Polyamid PA 6
Amount	250 [pcs.]
GTIN (EAN-Code)	4048962168518
