The universal undercut anchor made of stainless steel for natural stone or artificial concrete panels.

Zykon-Panel anchor FZP II A4

Name: Zykon-Panel anchor FZP II A4
Brand: fischer

The undercut anchor out of stainless steel for a concealed flush installation solution for façade panels out of natural stone or artificial concrete. These are fixed with a consistent drill hole depth aligned to the back of the panel. This type of fixing technology is used e.g. with calibrated façade panels or for reveal angle installation.

Product variants

Approvals / Test reports

12 Product variant (s)

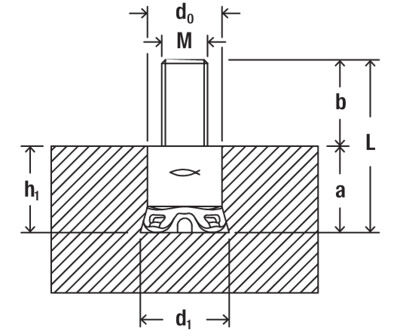

Anchorage depth

Min. panel thickness

Type

Projection length

Thread

Cylindrical diameter

Legend = Permission Available— = Permission not Available

Viewed 12 of 12 variant (s)

Advantages

The flush-mounting technology of the undercut anchor allows an easy, economical handling of reveals.
The matching shape of the undercut anchor creates a inter-locking and stress-free fixing in the conical undercuted drill hole.
The fixing is not externally visible, creating a visually appealing façade surface.
Setting the anchor using undercut technology allows the user to select the best structural position in the façade panel. This significantly reduces the bending moment of the panel.
The anchor allows higher failure loads compared to common systems.

ETA Certification Document

pdf, ETA-11/0145

European Technical Assessment for fischer-Zykon-panel anchor FZP II - Fastener for the rear fixing of facade panels made of selected natural stones according to EN 1469

Created on 09/06/2022

DOP - Declaration of Performance

pdf, DoP No. 0307

Declaration of Performance for fischer Zykon-panel anchor FZP II

Created on 01/07/2022

DOP - Declaration of Performance

pdf, DoP No. 0261

Declaration of Performance for fischer Zykon-panel anchor FZP II

Created on 11/01/2021

ETA Certification Document

pdf, ETA-22/0400

European Technical Assessment for fischer ZYKON FZP II for fixing Mirage facade panels

Created on 25/08/2022

DOP - Declaration of Performance

pdf, DoP No. 0322

Declaration of Performance for fischer Zykon-panel anchor FZP II (for Mirage)

Created on 12/10/2022

ETA-approval
Anchorage depth ( h_ef )	12 mm
Min. panel thickness	20 mm
Type	Flush anchor
Projection length	13 mm
Thread ( M )	M6
Cylindrical diameter	11 mm
Undercutdiameter	13,5 mm
Material	stainless steel A4
Material sleeve	stainless steel A4
Amount	250 pcs.
GTIN (EAN-Code)	4048962112436

ETA-approval
Anchorage depth ( h_ef )	12 mm
Min. panel thickness	20 mm
Type	Flush anchor
Projection length	18 mm
Thread ( M )	M6
Cylindrical diameter	11 mm
Undercutdiameter	13,5 mm
Material	stainless steel A4
Material sleeve	stainless steel A4
Amount	250 pcs.
GTIN (EAN-Code)	4048962112443

ETA-approval
Anchorage depth ( h_ef )	15 mm
Min. panel thickness	30 mm
Type	Flush anchor
Projection length	10 mm
Thread ( M )	M6
Cylindrical diameter	11 mm
Undercutdiameter	13,5 mm
Material	stainless steel A4
Material sleeve	stainless steel A4
Amount	250 pcs.
GTIN (EAN-Code)	4048962112450

ETA-approval
Anchorage depth ( h_ef )	15 mm
Min. panel thickness	30 mm
Type	Flush anchor
Projection length	18 mm
Thread ( M )	M6
Cylindrical diameter	11 mm
Undercutdiameter	13,5 mm
Material	stainless steel A4
Material sleeve	stainless steel A4
Amount	250 pcs.
GTIN (EAN-Code)	4048962112467

ETA-approval
Anchorage depth ( h_ef )	15 mm
Min. panel thickness	30 mm
Type	Flush anchor
Projection length	23 mm
Thread ( M )	M8
Cylindrical diameter	13 mm
Undercutdiameter	15,5 mm
Material	stainless steel A4
Material sleeve	stainless steel A4
Amount	250 pcs.
GTIN (EAN-Code)	4048962112498

Zykon-Panel anchor FZP II A4

Product variants

The advantages / Product description

Application and approval

Assembly instruction

Documents for download

ETA-approval
Anchorage depth ( h_ef )	17 mm
Min. panel thickness	30 mm
Type	Flush anchor
Projection length	17 mm
Thread ( M )	M8
Cylindrical diameter	13 mm
Undercutdiameter	15,5 mm
Material	stainless steel A4
Material sleeve	stainless steel A4
Amount	250 pcs.
GTIN (EAN-Code)	4048962112511

ETA-approval
Anchorage depth ( h_ef )	21 mm
Min. panel thickness	35 mm
Type	Flush anchor
Projection length	9 mm
Thread ( M )	M8
Cylindrical diameter	13 mm
Undercutdiameter	15,5 mm
Material	stainless steel A4
Material sleeve	stainless steel A4
Amount	250 pcs.
GTIN (EAN-Code)	4048962112528
