Zykon-Panel anchor FZP II M6i

The undercut anchor with an internal thread for M6 threaded screws for natural stone or artificial concrete panels.

The undercut anchor with internal thread for a concealed flush or stand-off installation of heavy façade panels out of natural stone. Calibrated panels or reveal panels can be flush mounted and panel tolerances can be adjusted through the stand-off installation. Due to the internal thread, there is no protruding external thread. Thus panels can be prefabricated and transported in a space-saving manner. This improves the economic efficiency and flexibility of the system.

Product Description

Advantages
  • The integrated internal thread allows panels to be pre-fabricated and transported securely.
  • The matching shape of the undercut anchor creates a inter-locking and stress-free fixing in the conical undercuted drill hole.
  • The fixing is not externally visible, creating a visually appealing façade surface.
  • Setting the anchor using undercut technology allows the user to select the best structural position in the façade panel. This significantly reduces the bending moment of the panel.
  • The anchor allows higher failure loads compared to common systems.

Available Product Variants


1 Product variant (s) found

1 Product variant (s) found

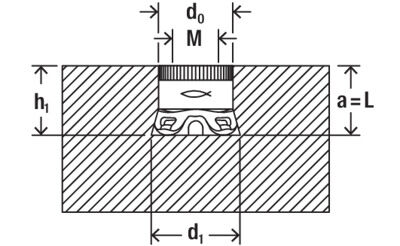

Variant
Anchorage depth

hef

Thread

M

Cylindrical diameter
Undercutdiameter
Art.-No. 512958

12 [mm]

M6

13 [mm]

15.5 [mm]

Viewed 1 of 1 variant (s)
0

Application and Permission

Applications
  • Indoor applications (such as wash basins, natural stone heating systems, ...)
Building materials
  • Natural stone (>20mm)
* You can find detailed information on building materials in the registration document.

Assembly Instruction

Functionality
  • The hole is either drilled to a constant reference dimension for the remaining wall thickness (RWT) or with an absolute anchoring depth.
  • The anchor can be installed flush or stand-off.
  • The compensation of panel thickness tolerances results in a completely flat façade surface.
  • Wet diamond drilling: first cylindrical, then conical - to create the undercut. #Inserting the undercut anchor in the cylindrical-conical undercut hole
  • Expanding the undercut anchor by "pressing down" the washer using the setting tools
  • Stress-free and geometrical inter-locking fixing
