The undercut anchor with an internal thread for M8 threaded screws for natural stone or artificial concrete panels

Zykon-Panel anchor FZP II M8i

Name: Zykon-Panel anchor FZP II M8i
Brand: fischer

The undercut anchor with internal thread for a concealed flush or stand-off installation of heavy façade panels out of natural stone. Calibrated panels or reveal panels can be flush mounted and panel tolerances can be adjusted through the stand-off installation. Due to the internal thread, there is no protruding external thread. Thus panels can be prefabricated and transported in a space-saving manner. This improves the economic efficiency and flexibility of the system.

Product variants

Download of image data

Product variants

Approvals / Test reports

3 Product variant (s)

Anchorage depth

Min. panel thickness

Type

Total length

Thread

Cylindrical diameter

Legend = Permission Available— = Permission not Available

Viewed 3 of 3 variant (s)

Advantages

The flush-mounted anchor allows for easy, economical construction of reveals.
Depending on the application, the user can choose between flush installation with an absolute anchoring depth, for instance for reveal panels, and stand-off installation technology with a constant remaining wall thickness that serves as a reference dimension to compensate panel thickness tolerances.
There is no protruding external thread, allowing a space-saving transportation of pre-fabricated façade panels.
The matching shape of the undercut anchor creates a inter-locking and stress-free fixing in the conical undercuted drill hole.
The fixing is not externally visible, creating a visually appealing façade surface.
Setting the anchor using undercut technology allows the user to select the best structural position in the façade panel. This significantly reduces the bending moment of the panel.
The anchor allows higher failure loads compared to common systems.

Functionality

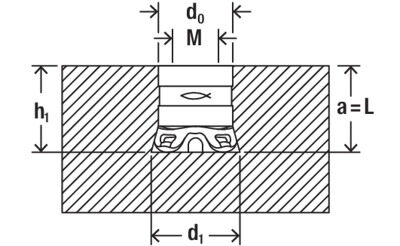

The hole is either drilled to a constant reference dimension for the remaining wall thickness (RWT) or with an absolute anchoring depth.
The anchor can be installed flush or stand-off.
The compensation of panel thickness tolerances results in a completely flat façade surface.
Wet diamond drilling: first cylindrical, then conical - to create the undercut. #Inserting the undercut anchor in the cylindrical-conical undercut hole
Expanding the undercut anchor by "pressing down" the washer using the setting tools
Stress-free and geometrical inter-locking fixing

Mounting Strip 1 Picture

1 / 4

ETA Certification Document

pdf, ETA-11/0145

European Technical Assessment for fischer-Zykon-panel anchor FZP II - Fastener for the rear fixing of facade panels made of selected natural stones according to EN 1469

Created on 09/06/2022

DOP - Declaration of Performance

pdf, DoP No. 0307

Declaration of Performance for fischer Zykon-panel anchor FZP II

Created on 01/07/2022

DOP - Declaration of Performance

pdf, DoP No. 0261

Declaration of Performance for fischer Zykon-panel anchor FZP II

Created on 11/01/2021

ETA Certification Document

pdf, ETA-22/0400

European Technical Assessment for fischer ZYKON FZP II for fixing Mirage facade panels

Created on 25/08/2022

DOP - Declaration of Performance

pdf, DoP No. 0322

Declaration of Performance for fischer Zykon-panel anchor FZP II (for Mirage)

Created on 12/10/2022

ETA-approval
Anchorage depth ( h_ef )	12 mm
Min. panel thickness	20 mm
Type	Internal thread anchor
Total length ( l )	12 mm
Thread ( M )	M8
Cylindrical diameter	15 mm
Undercutdiameter	17,5 mm
Material	A4
Material sleeve	Carbon fibre reinforced plastic
Contents	including dust protection cap
Amount	250 pcs.
GTIN (EAN-Code)	4048962269826

ETA-approval
Anchorage depth ( h_ef )	15 mm
Min. panel thickness	25 mm
Type	Internal thread anchor
Total length ( l )	15 mm
Thread ( M )	M8
Cylindrical diameter	15 mm
Undercutdiameter	17,5 mm
Material	A4
Material sleeve	Carbon fibre reinforced plastic
Contents	including dust protection cap
Amount	250 pcs.
GTIN (EAN-Code)	4048962269833

ETA-approval
Anchorage depth ( h_ef )	21 mm
Min. panel thickness	35 mm
Type	Internal thread anchor
Total length ( l )	21 mm
Thread ( M )	M8
Cylindrical diameter	15 mm
Undercutdiameter	17,5 mm
Material	A4
Material sleeve	Carbon fibre reinforced plastic
Contents	including dust protection cap
Amount	250 pcs.
GTIN (EAN-Code)	4048962278187
