Zykon-Panel anchor FZP II SO AL

The adjusting undercut anchor made of stainless steel for natural stone or artificial concrete panels.

The undercut anchor out of stainless steel for a concealed stand-off installation solution for façade panels out of natural stone or artificial concrete.<br />This technology defines a constant distance between the front of the panel to the connection face on the FZP II anchor (RWT = remainig wall thickness) as a reference dimension for drilling. This technology can be used to compensate panel thicknesses. A completely flat façade surface is created.

Product Description

Advantages

Using a constant remaining wall thickness as a reference value when drilling holes allows users to compensate panel thickness tolerances.
The matching shape of the undercut anchor creates a inter-locking and stress-free fixing in the conical undercuted drill hole.
The fixing is not externally visible, creating a visually appealing façade surface.
Setting the anchor using undercut technology allows the user to select the best structural position in the façade panel. This significantly reduces the bending moment of the panel.
The anchor allows higher failure loads compared to common systems.

Available Product Variants

5 Product variant (s) found

Variant

ETA-approval

Anchorage depth

h_ef

Total length

Projection length

Legend = Permission Available — = Permission not Available

Viewed 5 of 5 variant (s)

Application and Permission

Applications

Exterior façades with high aesthetic requirements
Interior façades with high aesthetic requirements

Building materials

Natural stone (>20mm)
Artificial concrete panels

* You can find detailed information on building materials in the registration document.

Permission

ETA-11/0145
ETA-22/0400
DoP No. 0261
DoP No. 0307

For Details see corresponding Documents

Assembly Instruction

Functionality

The hole is drilled to a constant reference dimension for the remaining wall thickness (RWT).
The anchor is set through stand-off installation.
The compensation of panel thickness tolerances results in a completely flat façade surface.
Wet diamond drilling: first cylindrical, then conical - to create the undercut. #Inserting the undercut anchor in the cylindrical-conical undercut hole
Expanding the undercut anchor by "pressing down" the washer using the setting tools
Stress-free and geometrical inter-locking fixing

Documents for Downloading

Approvals

Title	Type	Created
ETA Certification Document (PDF, 4 MB) European Technical Assessment for fischer-Zykon-panel anchor FZP II - Fastener for the rear fixing of facade panels made of selected natural stones according to EN 1469	ETA-11/0145	09-06-2022
ETA Certification Document (PDF, 852 KB) European Technical Assessment for fischer ZYKON FZP II for fixing Mirage facade panels	ETA-22/0400	25-08-2022
DOP - Declaration of Performance (PDF, 4 MB) Declaration of Performance for fischer Zykon-panel anchor FZP II	DoP No. 0261	11-01-2021
DOP - Declaration of Performance (PDF, 4 MB) Declaration of Performance for fischer Zykon-panel anchor FZP II	DoP No. 0307	01-07-2022

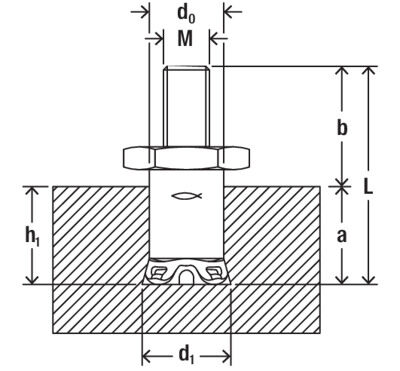

ETA-approval
Anchorage depth h_ef	12 - 16 [mm]
Total length l	21 [mm]
Projection length	9 [mm]
Thread M	M6
Cylindrical diameter	11 [mm]
Undercutdiameter	13.5 [mm]
Type	Stand-off anchor
Min. panel thickness	20 [mm]
Material sleeve	stainless steel A4
Amount	250 [pcs.]
GTIN (EAN-Code)	4048962112559

ETA-approval
Anchorage depth h_ef	12 - 16 [mm]
Total length l	21 [mm]
Projection length	12 [mm]
Thread M	M6
Cylindrical diameter	11 [mm]
Undercutdiameter	13.5 [mm]
Type	Stand-off anchor
Min. panel thickness	20 [mm]
Material sleeve	stainless steel A4
Amount	250 [pcs.]
GTIN (EAN-Code)	4048962112566

ETA-approval
Anchorage depth h_ef	15 - 21 [mm]
Total length l	26 [mm]
Projection length	12 [mm]
Thread M	M8
Cylindrical diameter	13 [mm]
Undercutdiameter	15.5 [mm]
Type	Stand-off anchor
Min. panel thickness	30 [mm]
Material sleeve	stainless steel A4
Amount	250 [pcs.]
GTIN (EAN-Code)	4048962260984

ETA-approval
Anchorage depth h_ef	15 - 21 [mm]
Total length l	26 [mm]
Projection length	17 [mm]
Thread M	M8
Cylindrical diameter	13 [mm]
Undercutdiameter	15.5 [mm]
Type	Stand-off anchor
Min. panel thickness	30 [mm]
Material sleeve	stainless steel A4
Amount	250 [pcs.]
GTIN (EAN-Code)	4048962112573

ETA-approval
Anchorage depth h_ef	15 - 25 [mm]
Total length l	30 [mm]
Projection length	13 [mm]
Thread M	M8
Cylindrical diameter	13 [mm]
Undercutdiameter	15.5 [mm]
Type	Stand-off anchor
Min. panel thickness	30 [mm]
Material sleeve	stainless steel A4
Amount	250 [pcs.]
GTIN (EAN-Code)	4048962121193
