Zykon-Panel anchor FZP II VS

The suspension anchor with the fischer Vertical Solution for natural stone or artificial concrete panels.

The undercut anchor for a concealed stand-off installation soution for heavy natural stone façade panels. This anchor can only be used with the fischer Vertical Solution subframe system. Suspension brackets designed based on a lock and key principle are used to install the undercut anchors. This technology defines a constant distance between the front of the panel to the connection face on the FZP II anchor (RWT = remaining wall thickness) as a reference dimension for drilling. Panel thicknesses are thus compensated. A completely flat façade surface is created.

Product Description

Advantages

Using a constant remaining wall thickness as a reference value when drilling holes allows users to compensate panel thickness tolerances.
The matching shape of the undercut anchor creates a inter-locking and stress-free fixing in the conical undercuted drill hole.
The fixing is not externally visible, creating a visually appealing façade surface.
Setting the anchor using undercut technology allows the user to select the best structural position in the façade panel. This significantly reduces the bending moment of the panel.
The anchor allows higher failure loads compared to common systems.

Available Product Variants

3 Product variant (s) found

Variant

ETA-approval

Anchorage depth

h_ef

Total length

Projection length

Legend = Permission Available — = Permission not Available

Viewed 3 of 3 variant (s)

Application and Permission

Applications

Exterior façades with high aesthetic requirements and a reduced wall construction
Interior façades with high aesthetic requirements and a reduced wall construction

Building materials

Natural stone (>20mm)

* You can find detailed information on building materials in the registration document.

Permission

ETA-11/0145
ETA-22/0400
DoP No. 0261
DoP No. 0307

For Details see corresponding Documents

Assembly Instruction

Functionality

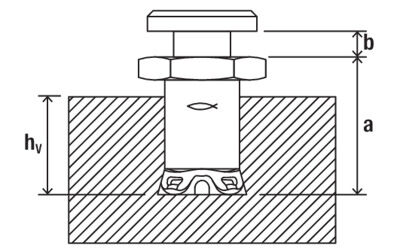

The hole is drilled to a constant reference dimension for the remaining wall thickness (RWT).
The anchor is installed stand-off installation.
The compensation of panel thickness tolerances results in a completely flat façade surface.
Suspension brackets designed on a lock and key principle are also used during installation
Wet diamond drilling: first cylindrical, then conical - to create the undercut. #Inserting the undercut anchor in the cylindrical-conical undercut hole
Expanding the undercut anchor by "pressing down" the washer using the setting tools
Stress-free and geometrical inter-locking fixing

Documents for Downloading

Approvals

Title	Type	Created
ETA Certification Document (PDF, 4 MB) European Technical Assessment for fischer-Zykon-panel anchor FZP II - Fastener for the rear fixing of facade panels made of selected natural stones according to EN 1469	ETA-11/0145	09-06-2022
ETA Certification Document (PDF, 852 KB) European Technical Assessment for fischer ZYKON FZP II for fixing Mirage facade panels	ETA-22/0400	25-08-2022
DOP - Declaration of Performance (PDF, 4 MB) Declaration of Performance for fischer Zykon-panel anchor FZP II	DoP No. 0261	11-01-2021
DOP - Declaration of Performance (PDF, 4 MB) Declaration of Performance for fischer Zykon-panel anchor FZP II	DoP No. 0307	01-07-2022

ETA-approval
Anchorage depth h_ef	12 - 16 [mm]
Total length l	21 [mm]
Projection length	4.5 [mm]
Thread M	M6
Cylindrical diameter	11 [mm]
Undercutdiameter	13.5 [mm]
Type	Stand-off anchor
Min. panel thickness	20 [mm]
Material sleeve	stainless steel A4
Amount	250 [pcs.]
GTIN (EAN-Code)	4048962112580

ETA-approval
Anchorage depth h_ef	15 - 21 [mm]
Total length l	26 [mm]
Projection length	4.5 [mm]
Thread M	M8
Cylindrical diameter	13 [mm]
Undercutdiameter	15.5 [mm]
Type	Stand-off anchor
Min. panel thickness	30 [mm]
Material sleeve	stainless steel A4
Amount	250 [pcs.]
GTIN (EAN-Code)	4048962112597

ETA-approval
Anchorage depth h_ef	15 - 25 [mm]
Total length l	30 [mm]
Projection length	4.5 [mm]
Thread M	M8
Cylindrical diameter	13 [mm]
Undercutdiameter	15.5 [mm]
Type	Stand-off anchor
Min. panel thickness	30 [mm]
Material sleeve	stainless steel A4
Amount	250 [pcs.]
GTIN (EAN-Code)	4048962112603
