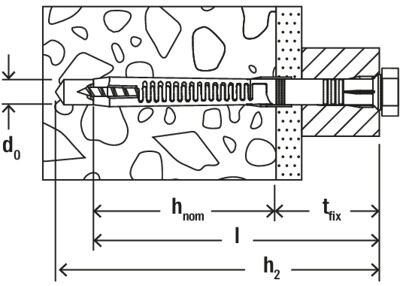

The fischer frame fixing FUR consists of a plug sleeve made from high-quality nylon and a hexagonal screw made from zinc-plated steel or stainless steel. When the screw is screwed in, the asymmetrically arranged lamella teeth expand evenly against the wall of the drill hole in the solid building material. In hollow materials, the teeth expand through the solid part of the block and form an undercut in the cavity. The functional principle enables an even load application without extreme expansion pressure and simplifies installation even in the case of an unknown mounting substrate. The FUR is offered in diameters of 8 mm and 10 mm up to a fixing length of 230 mm. The European Technical Approval for the FUR 10 offers added safety. The FUR with hexagonal screw is particularly suitable for the fixing of metal constructions.
Available Product Variants
3 Product variant (s) found
Application and Permission
Documents for Downloading
|ETA Certification Document (PDF, 670 KB) European Technical Assessment for fischer frame fixing FUR - Plastic anchor for multiple use in concrete and masonry for non-structural applications||ETA-13/0235||12-03-2021|
|DOP - Declaration of Performance (PDF, 602 KB) Declaration of Performance fischer FUR / concrete / masonry according ETA-13/0235||DoP No. 0033||20-08-2015|
|DOP - Declaration of Performance (PDF, 530 KB) Declaration of Performance||DoP No. 0142||06-06-2018|
|DOP - Declaration of Performance (PDF, 743 KB) Declaration of Performance||DoP No. 0242||26-03-2021|
