The universal undercut anchor made of stainless steel for natural stone or artificial concrete panels.

Zykon panel anchors FZP II R

The undercut anchor out of stainless steel for a concealed flush installation solution for façade panels out of natural stone or artificial concrete. These are fixed with a consistent drill hole depth aligned to the back of the panel. This type of fixing technology is used e.g. with calibrated façade panels or for reveal angle installation.

Product variants

Download of image data

Product variants

Engedélyek / vizsgálati jelentések

12 termékváltozat

Min. panel thickness

Embedment depth

Total length

Installed anchor length

Remaining thread length

Thread

Jelmagyarázat = Van engedély— = Nincs engedély

A (z) 12 változatok 12 megtekintése

Advantages

The flush-mounting technology of the undercut anchor allows an easy, economical handling of reveals.
The matching shape of the undercut anchor creates an inter-locking and stress-free fixing in the conical undercuted drill hole.
The fixing is not externally visible, creating a visually appealing façade surface.
Setting the anchor using undercut technology allows the user to select the best structural position in the façade panel. This significantly reduces the bending moment of the panel.
The anchor allows higher failure loads compared to common systems.

Functionality

The drill hole is drilled with an absolute anchoring depth.
Flush installation of the anchor.
Wet diamond drilling: first cylindrical, then conical - to create the undercut.

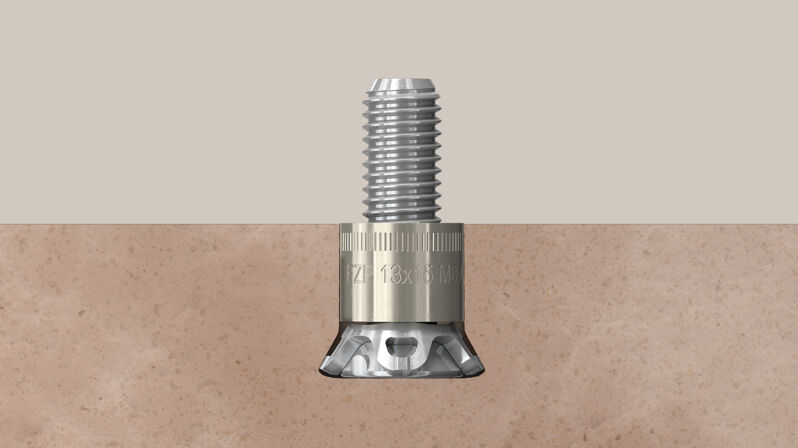

Inserting the undercut anchor in the cylindrical-conical undercut hole
Expanding the undercut anchor by "pressing down" the washer using the setting tools
Stress-free and geometrical inter-locking fixing

Mounting Strip 1 Picture

1 / 4

1
2
3
4

ETA-approval
Min. panel thickness	20 mm
Embedment depth ( h₁ )	12 mm
Total length ( l )	25 mm
Installed anchor length ( a )	12 mm
Remaining thread length ( b )	13 mm
Thread ( M )	M6
Cylindrical diameter ( d₀ )	11 mm
Undercutdiameter ( d₁ )	13,5 mm
Seismic-Approval	C1 / C2
System	—
Amount	250 pcs
GTIN (EAN-Code)	4048962112436

ETA-approval
Min. panel thickness	20 mm
Embedment depth ( h₁ )	12 mm
Total length ( l )	30 mm
Installed anchor length ( a )	12 mm
Remaining thread length ( b )	18 mm
Thread ( M )	M6
Cylindrical diameter ( d₀ )	11 mm
Undercutdiameter ( d₁ )	13,5 mm
Seismic-Approval	C1 / C2
System	—
Amount	250 pcs
GTIN (EAN-Code)	4048962112443

ETA-approval
Min. panel thickness	30 mm
Embedment depth ( h₁ )	15 mm
Total length ( l )	25 mm
Installed anchor length ( a )	15 mm
Remaining thread length ( b )	10 mm
Thread ( M )	M6
Cylindrical diameter ( d₀ )	11 mm
Undercutdiameter ( d₁ )	13,5 mm
Seismic-Approval	C1 / C2
System	—
Amount	250 pcs
GTIN (EAN-Code)	4048962112450

ETA-approval
Min. panel thickness	30 mm
Embedment depth ( h₁ )	15 mm
Total length ( l )	51 mm
Installed anchor length ( a )	15 mm
Remaining thread length ( b )	18 mm
Thread ( M )	M6
Cylindrical diameter ( d₀ )	11 mm
Undercutdiameter ( d₁ )	13,5 mm
Seismic-Approval	C1 / C2
System	—
Amount	250 pcs
GTIN (EAN-Code)	4048962112467

ETA-approval
Min. panel thickness	30 mm
Embedment depth ( h₁ )	15 mm
Total length ( l )	38 mm
Installed anchor length ( a )	15 mm
Remaining thread length ( b )	23 mm
Thread ( M )	M8
Cylindrical diameter ( d₀ )	13 mm
Undercutdiameter ( d₁ )	15,5 mm
Seismic-Approval	C1 / C2
System	—
Amount	250 pcs
GTIN (EAN-Code)	4048962112498
