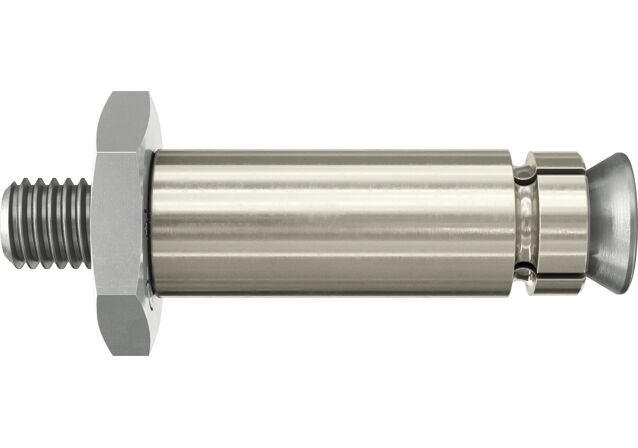

fischer Zykon panel anchor FZP 13 x 41 M8/SO/19 SH AL

Name: fischer Zykon panel anchor FZP 13 x 41 M8/SO/19 SH AL
Brand: fischer

Product variants

Download of image data

Top Features

Stand-off installation of panels with tolerances.
Compensation of panel thickness tolerances for highest visual requirements.
Designed for natural stones class IV.
Stress-free fixing enables high loads and use of thin panels.
Sleeve made of stainless steel.

Art.-Nr. 540698
FZPB 13/38 CNC
Art.-Nr. 802522
SGB/230V, battery operated setting tool
Art.-Nr. 802506
STU 10-30 dial gauge
Art.-Nr. 061500
SBN 502 drill rig
Art.-Nr. 802507
MST-D, digital caliper
Art.-Nr. 521670
Lock nut M8 A4
Art.-Nr. 803748
SGA M8, setting adapter

The undercut anchor for soft stone façade panels.

Advantages

Using a constant remaining wall thickness as a reference value when drilling holes allows users to compensate panel thickness tolerances.
The flush-mounted anchor allows for easy, economical construction of reveals.
Depending on the application, the user can choose between flush installation with an absolute anchoring depth, for instance for reveal panels, and stand-off installation technology with a constant remaining wall thickness that serves as a reference dimension to compensate panel thickness tolerances.
There is no protruding external thread, allowing a space-saving transportation of pre-fabricated façade panels.
The matching shape of the undercut anchor creates a inter-locking and stress-free fixing in the conical undercuted drill hole.
The fixing is not externally visible, creating a visually appealing façade surface.
Setting the anchor using undercut technology allows the user to select the best structural position in the façade panel. This significantly reduces the bending moment of the panel.
The anchor allows higher failure loads compared to common systems.

The concealed stand-off installation solution for heavy façade panels made of selected soft natural stone (stone group IV - sedimentary rock). This technology defines a constant distance between the front of the panel to the connection face on the FZP II anchor (RWT = remaining wall thickness) as a reference dimension for drilling. This technology can be used to compensate panel thickness tolerances and create a flat façade surface by using stand-off installation anchors.

Applications

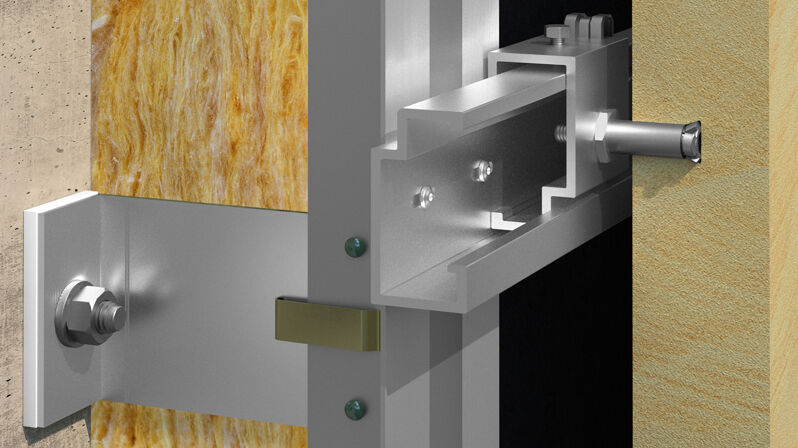

Exterior façades with heavy façade panels made of selected, soft natural stone (stone group IV - sedimentary rock)
Interior façades with heavy façade panels made of selected, soft natural stone (stone group IV - sedimentary rock)

Building materials

Building materials Natural stone (stone group IV) (> 50mm)

* You can find detailed information on building materials in the registration document.

Functionality

The hole is either drilled to a constant reference dimension for the remaining wall thickness (RWT) or with an absolute anchoring depth.
The anchor can be installed flush or stand-off.
The compensation of panel thickness tolerances results in a completely flat façade surface.
Wet diamond drilling: first cylindrical, then conical - to create the undercut.

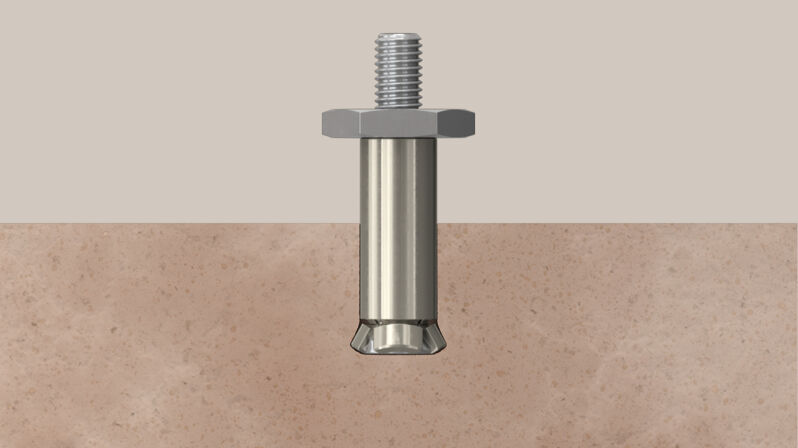

Inserting the undercut anchor in the cylindrical-conical undercut hole

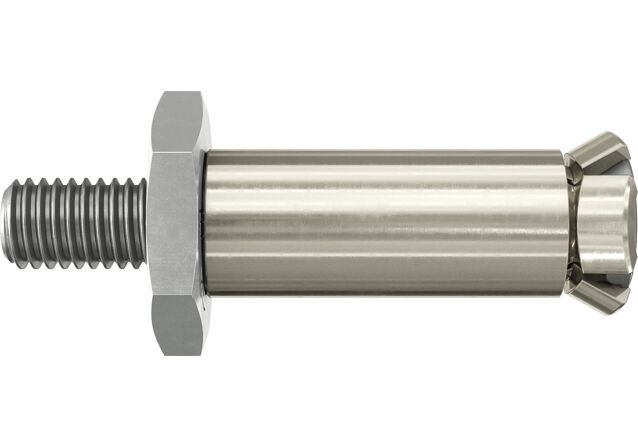

Expanding the undercut anchor by "pressing down" the washer using the setting tools.
Stress-free and geometrical inter-locking fixing.

Mounting Strip 1 Picture

1 / 4

Mounting Strip 2 Picture

1 / 6

Min. panel thickness	50 mm
Embedment depth ( h₁ )	30 - 36 mm
Total length ( l )	64 mm
Installed anchor length ( a )	41 mm
Remaining thread length ( b )	23 mm
Thread ( M )	M8
Cylindrical diameter ( d₀ )	13 mm
Undercutdiameter ( d₁ )	17,3 mm
System	—
Amount	50 pcs
GTIN (EAN-Code)	4048962171518
