ZYKON undercut anchor FZA

The fixing system with the highest safety in cracked concrete

The fischer ZYKON undercut anchor FZA is an anchor made from zinc-plated steel, stainless steel and highly corrosion-resistant steel. The undercut anchor is ideal for anchoring façades, railings and steel constructions in cracked concrete, both inside and outside. The undercut drill hole is created in a single work step with the special drill bit FZUB. The undercut anchor is set in a pre-positioned and push-through installation. With the setting tool FZE Plus, the expansion sleeve is pressed over the cone and fills the undercut drill hole in a positive-locking manner. This ensures top safety even for large crack widths. The European Technical Approval and classification into fire resistance class R 120 ensure added safety.

Product Description

Advantages

The special ZYKON undercut technology allows for a positive fit connection and ensures maximum safety, even in large cracks.
The almost expansion-free installation of the anchor allows small edge distances and axial spacing, and thereby enables flexible use.
The FZUB special drill allows for a fast installation by creating the undercut without having to change tools.
The drill hole geometry allows for a very low setting energy, thus reducing the energy required for installation.

Available Product Variants

3 Product variant (s) found

Variant

ETA-approval

DIBt-approval

Required drill bit FZUB

Required setting tool

Legend = Permission Available — = Permission not Available

Viewed 3 of 3 variant (s)

Application and Permission

Applications

Steelwork constructions
Guard rails
Consoles
Ladders
Cable trays
Machines
Staircases
Gates
Façades

Building materials

Approved for:

Concrete C20/25 to C50/60, cracked and non-cracked

Also suitable for:

Concrete C12/15
Natural stone with dense structure

* You can find detailed information on building materials in the registration document.

Permission

ETA-98/0004
DoP No. 0208
0003023222

For Details see corresponding Documents

Assembly Instruction

Functionality

The FZA is suitable for pre-positioned installation.
The undercut drill hole is created using the special FZUB drill.
Once the anchor has been placed in the drill hole, the expansion sleeve is driven over the cone using the FZE Plus setting tool, and the undercut drill hole is filled with a positive fit.

Show assembly instruction as PDF

Documents for Downloading

Additional Documents

Approvals

Title	Type	Created
ETA Certification Document (PDF, 3 MB) European Technical Assessment for fischer-Zykon-Anchor FZA, FZA-D, FZA-I, FZA ST - Mechanical fasteners for use in concrete	ETA-98/0004	16-06-2021
DOP - Declaration of Performance (PDF, 3 MB) Declaration of Performance for fischer Zykon-Anchor FZA, FZA-D, FZA-I, FZA ST (Mechanical anchor for use in concrete)	DoP No. 0208	30-06-2021
Factory Mutual (PDF, 128 KB) FM Approval - Certificate of Compliance	0003023222

System Components & Related Categories

System Components

Accessories

Accessories

Accessories for anchoring undercut anchors

More Information

ETA-approval
DIBt-approval
Required drill bit FZUB	18 x 80
Required setting tool	FZE 18 plus

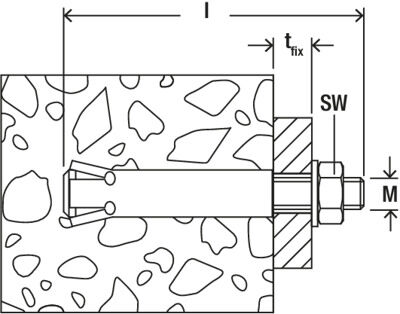

Drill diameter d₀	18 [mm]
Anchor length l	126 [mm]
Max. fixture thickness t _fix	25 [mm]
Thread M	M12
Width across nut	19 [mm]
Packaging	Folding box
Amount	10 [pcs.]
GTIN (EAN-Code)	4006209607213

ETA-approval
DIBt-approval
Required drill bit FZUB	22 x 100
Required setting tool	FZE 22 plus
Drill diameter d₀	22 [mm]
Anchor length l	184 [mm]
Max. fixture thickness t _fix	60 [mm]
Thread M	M16
Width across nut	24 [mm]
Packaging	Folding box
Amount	10 [pcs.]
GTIN (EAN-Code)	4006209607244

ETA-approval
DIBt-approval
Required drill bit FZUB	22 x 125
Required setting tool	FZE 22 plus
Drill diameter d₀	22 [mm]
Anchor length l	209 [mm]
Max. fixture thickness t _fix	60 [mm]
Thread M	M16
Width across nut	24 [mm]
Packaging	Folding box
Amount	6 [pcs.]
GTIN (EAN-Code)	4006209607251
